What do you know about cng III cylinders?

As a Chinese cylinder manufacturer, Clean Energy's CNG 3 cylinder consists of a seamless steel lining and a carbon fiber winding layer. The advantage of type 3 cylinders is that they are lighter than steel cylinders; High strength and durability, high safety performance; The technology is mature, the same size, the total capacity is larger, and the net weight of the system is greatly reduced. The three-type cylinders produced by Anhui Clean Energy can reach a diameter of 430 mm and a water volume of 260 mm. The product complies with ECER110 implementation standards.

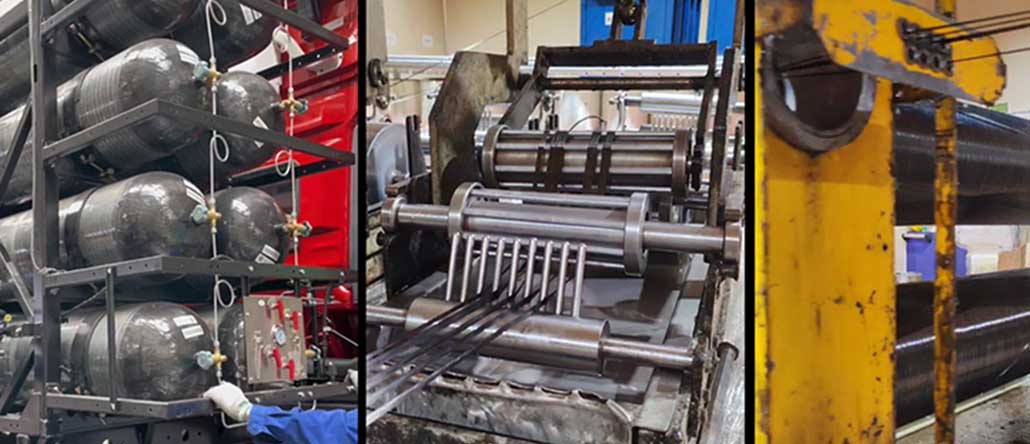

CNG 3 gas cylinder We use the wet winding process to impregnate carbon fiber strands in a specific dipping device, and then directly wound to the core mold under tension control, and finally through curing molding method.

Its main advantages are as follows:

(1) The product has good air tightness, and during the winding process, the excess resin glue can be extruded from the bubble through tension control, and the gap can be filled.

(2) The resin adhesive impregnated on the surface of carbon fiber can effectively reduce fiber wear.

(3) Good parallelism of fiber arrangement.
