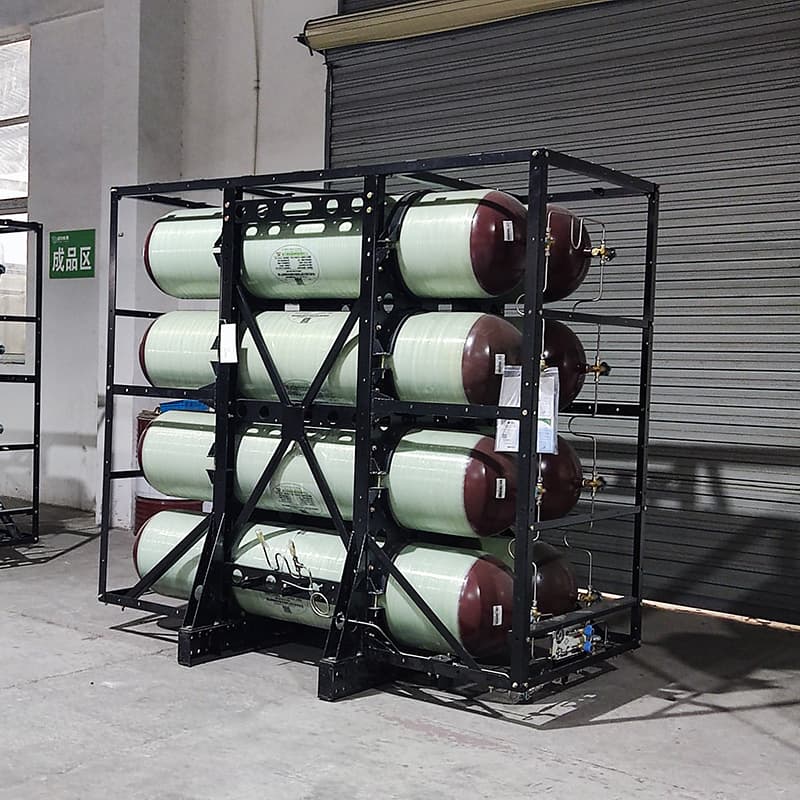

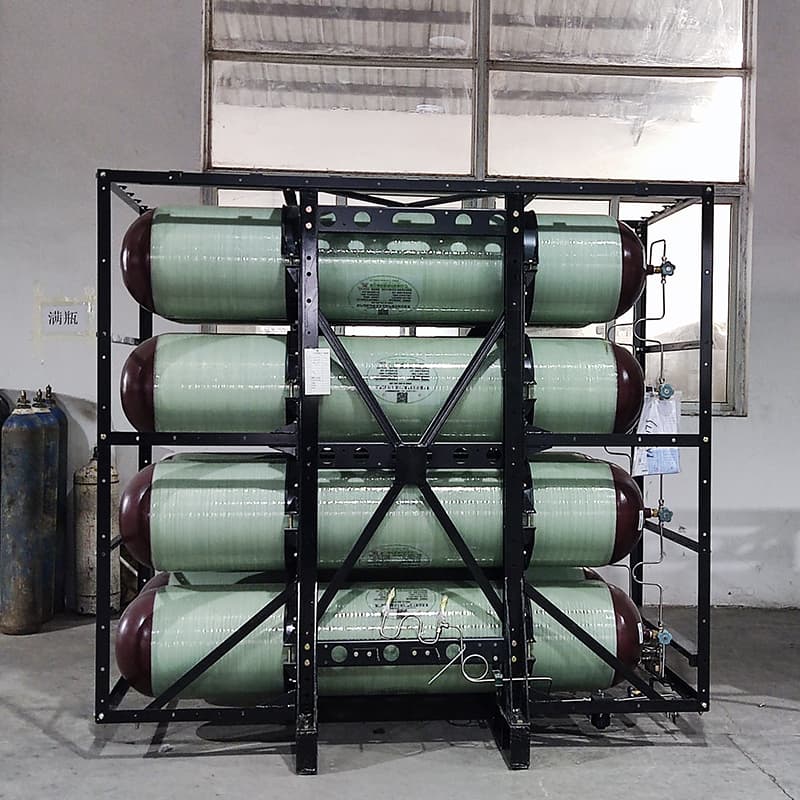

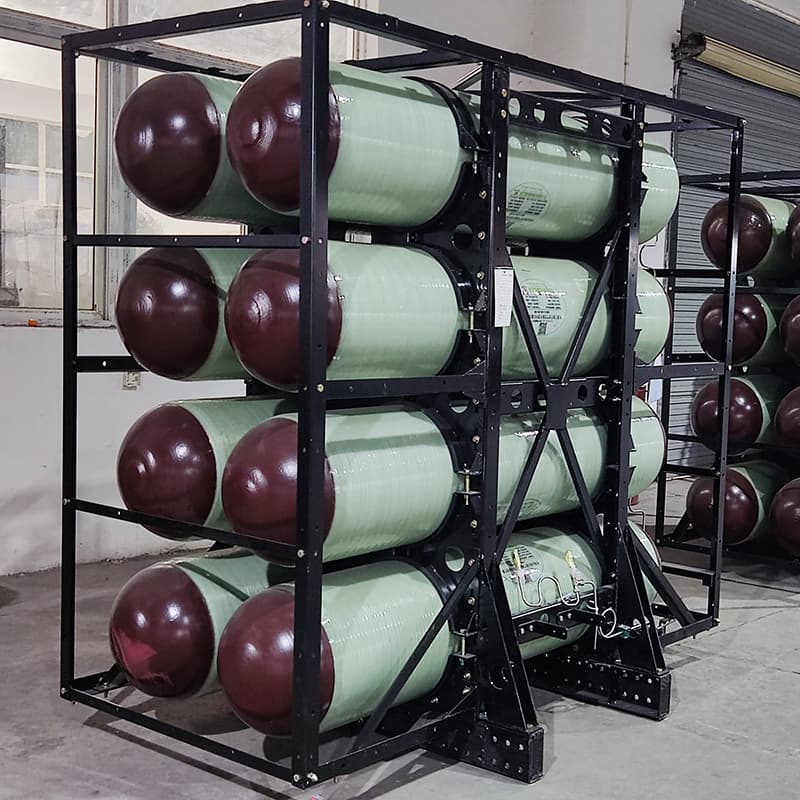

A gas cylinder group usually refers to an integral device formed by combining multiple gas cylinders through a certain connection and fixing method
Customized water volume and standard :
205L/260LNorminal Working Pressure (Bar) :
200Diameter(mm) :
406mm/416mm/426mmGas cylinder assembly
|
Bundles Water Capacity(L)
|
No.of cylinders(pcs)
|
Gas Capacity
（20℃/20Mpa）m³
|
Norminal Working
Pressure(bar)
|
Cylinder Outer
Diameter(mm)
|
Cylinder
Water
Capacity(L)
|
Bunddles
G.Weight(kg)
|
| 410 | 2 | 82 | 200 | 406 | 205 | 450.00 |
| 820 | 4 | 164 | 200 | 406 | 205 | 780.00 |
| 1230 | 6 | 246 | 200 | 406 | 205 | 1200.00 |
| 1845 | 9 | 369 | 200 | 406 | 205 | 1800.00 |
| 2460 | 12 | 492 | 200 | 406 | 205 | 2400.00 |
| 3280 | 16 | 656 | 200 | 406 | 205 | 2650.00 |
| 6560 | 32 | 1312 | 200 | 406 | 205 | 6400.00 |
| 9840 | 48 | 1969 | 200 | 406 | 205 | 9500.00 |
| 13120 | 64 | 2624 | 200 | 406 | 205 | 12500.00 |
| 260 | 1 | 52 | 200 | 416 | 260 | 240.00 |
| 1040 | 4 | 208 | 200 | 416 | 260 | 865.00 |
| 2080 | 8 | 416 | 200 | 416 | 260 | 1500.00 |
| 260 | 1 | 52 | 200 | 426 | 260 | 290.00 |
| 1040 | 4 | 208 | 200 | 426 | 260 | 1065.00 |
| 2080 | 8 | 416 | 200 | 426 | 260 | 1985.00 |
Range of Application:
.
Why Choose Us?
CNG Cylinder Product Inspection Display
Our factory through many cylinder testing, to ensure that the product is safe and reliable, so that you can rest assured to buy and use. Each test procedure is scientifically rigorous and should not be neglected. From materials to processes, CNG gas cylinders strive to combine excellent quality and safety, and each link shows exquisite technology and quality assurance.
.Since its establishment over ten years ago, the company has a self-built factory covering an area of 56,000 square meters. We currently have a workforce of 240 employees, including 50 senior technical and management personnel. Additionally, we possess the production capacity to manufacture 300,000 various types of gas cylinders per year, as well as 9,000 sets of CNG framework assemblies and gas supply systems.
CNG type 1 cylinders are a commonly found type of cylinders in natural gas industry. They are primarily for storing compressed natural gas and adhere to strict quality standards.
CNG Type 1 cylinders are high-pressure cylinders specially designed for the storage of compressed natural gas, carefully designed and rigorously manufactured to ensure excellent durability and safety. The cylinder adopts the most advanced seamless steel pipe manufacturing process to balance the pressure inside and outside the cylinder, which greatly improves the safety performance and reliability of the cylinder.
Our Steel cng cylinder for vehicles(CNG-1) are produced from seamless steel tubes by applying the most advanced forming technology, Hot-rotary Spinning, with this technology we can guarantee the cylinder length tolerance more accurately within 5-10mm.
CNG Type 1 automotive cylinders are carefully designed with the most advanced seamless steel pipe manufacturing process to ensure internal and external pressure balance, thus providing excellent durability and safety performance.
Our Steel cng cylinder for vehicles(CNG-1) are produced from seamless steel tubes by applying the most advanced forming technology, Hot-rotary Spinning, with this technology we can guarantee the cylinder length tolerance more accurately within 5-10mm.
CNG Type 1 cylinders are high-pressure cylinders specially designed for the storage of compressed natural gas, carefully designed and rigorously manufactured to ensure excellent durability and safety. The cylinder adopts the most advanced seamless steel pipe manufacturing process to balance the pressure inside and outside the cylinder, which greatly improves the safety performance and reliability of the cylinder.
CNG Type 1 cylinders are one of the key equipment for storing compressed natural gas. They are usually made of high-strength materials to ensure safe storage and utilization of natural gas.
CNG cylinders are compressed natural gas cylinders. High safety performance Due to the storage of high-pressure gas, cylinder design, manufacturing and inspection have strict standards to ensure safe use.
